Description

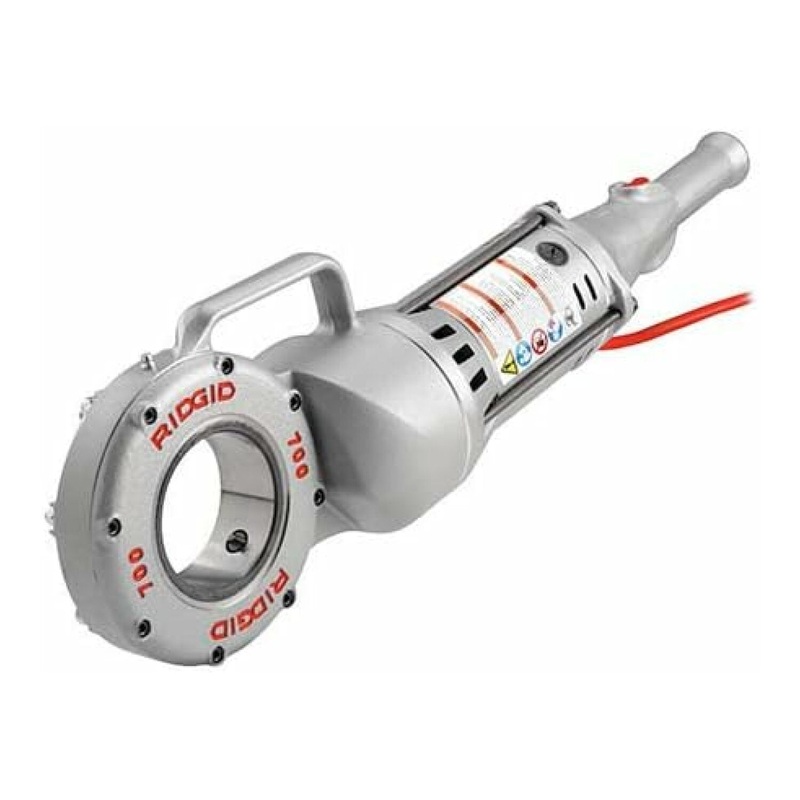

General InformationBrandRidgidApplicationPipe ThreadingWhat’s IncludedHand-Held Power DrivePackagingRetailCountry of OriginUnited StatesUPC095691132031California ResidentsProposition 65 WarningPart Number13203Product TypePipe ThreaderReturn PolicyNCNR – Non-Cancellable / Non-ReturnablePhysical CharacteristicsWeight14.51 kg32.00 lbColorSilverMaterialCast AluminumDetailsFeaturesProvides power for threading 1/8″ to 2″ pipe and 1/4″ to 1″ bolt
Designed for 12-R die heads (sold separately); compatible with other die heads (00-R, 00-RB, 11-R) when used with adapters (sold separately)
230V universal motor rotates machine at 26 to 30 RPM
Made with rugged cast aluminum housing for long-lasting performance
Easy to transport with lightweight 25-lb. construction
Equipped with reversible switch for selecting Forward and Reverse rotation
Ideal for heavy-duty applications with mechanical, electrical and plumbing contractors
Requires model 775 Support Arm or 14″ heavy duty pipe wrench (both sold separately) for threading 1″ or larger pipe
Suitable for use with 258/258XL Power Pipe Cutters
Note: Die heads and dies sold separatelySizeThreading Capacity:
1/8″ to 2″ (6 – 50 mm) Pipe
1/4″ to 1″ (8 – 25 mm) Bolt* (*Using 00-RB Die Heads)
Controls: Double-throw reversible switch with spring return to OFF position
Operating Speed: 26 to 30 RPM, no load
Motor Type: Universal, Reversible
Gear Head: Spur gear reduction face gear drive; spring-loaded adapter pawls; hardened steel spindle gear
Compatible Die Heads: 12-R; with adapters: 00-R, 00-RB, 11-R
Rating: 230 V, 50/60 Hz, 6A
Certifications/Approvals: UL, CSA, RoHS, WEEE
