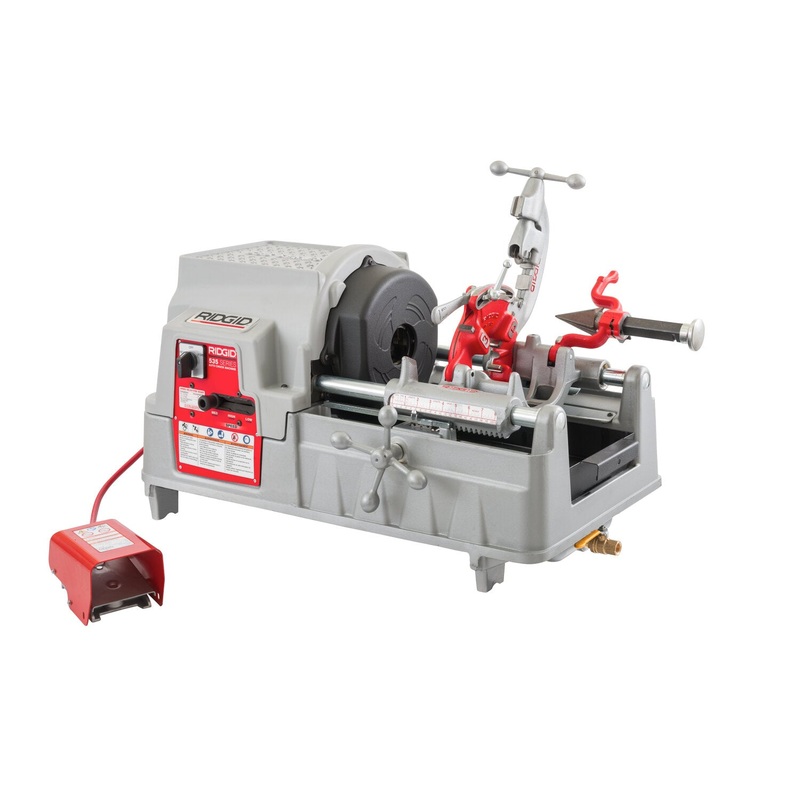

Ridgid 29933 Model 535A-400 3-Phase Automatic Chunk Pipe Threading Machine Only, 35/70 RPM, 400V, 3.5/5.1A

Description

General InformationBrandRidgidApplicationPipe ThreadingPackagingRetailCountry of OriginUnited StatesUPC095691299338California ResidentsProposition 65 WarningPart Number29933Product TypeThreading MachineReturn PolicyNCNR – Non-Cancellable / Non-ReturnablePhysical CharacteristicsWeight154.22 kg340.00 lbColorRed, Silver & BlackMaterialCast Iron, Steel & PlasticDetailsFeaturesAutomatic chuck with reversible forged jaws centers and grips work piece instantly

Large chip tray and 1.75 gallon oil reservoir allow for longer uninterrupted threading

Wide top cover provides space for keeping tools and fittings handy

High clearance carriage increases workpiece maneuverability to make threading easier

Suitable for use with geared threader Model 141 (sold separately) for threading large diameter pipe

Length gauge ensures quick and accurate cut-off

Uses Model 816/817 semi-automatic, Model 815A self-opening, or Model 811A quick-opening die heads – Die head and dies all sold separatelySizePipe Capacity: 1/8″ to 2″ (3 mm to 50 mm); 2 1/2″ to 4″ (65 mm to 100 mm) with 141 Geared Threader
Bolt Capacity: 1/4″ to 2″ (6 mm to 50 mm)

Controls: Rotary Type 2/1/0/1/2 Switch for speed and direction control; integral foot switch
Chuck: Automatic with four reversible forged jaws
Rear Centering Device: Automatic, centering only

Cutter: Model 820 Wheel-Type Cutter, self-centering, full-floating, 1/8″ to 2″
Reamer: Model 341, 5-flute cone, RH, 1/8″ to 2″

Oil Pump: Self-priming gerotor oil pump
Operating Speeds: 35/70 RPM
Motor: 3-Phase Induction, 1.8/2.3 HP, 400V, 3.5/5.1 Amps
